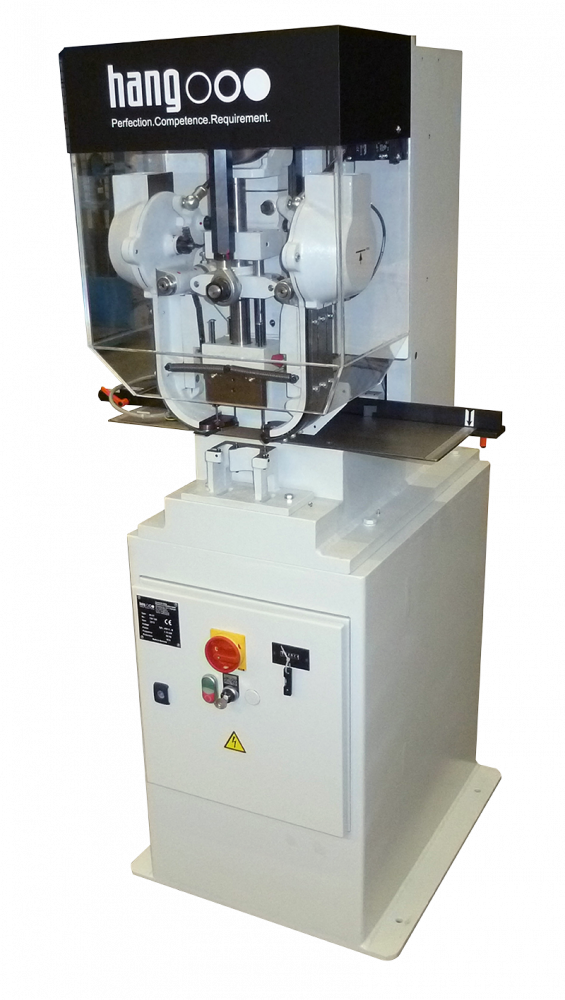

Quadruple riveting machine 65-01

For fastening lever mechanisms or push-in plates using 4 self-piercing riveting eyes.

With maintenance-free gear brake motor In a very sturdy welded design With two automatic double rivet feeders using the swivel channel principle and catch pin With stainless steel support table Adjustable rear and side stop with setting scales 3 point release of the rivet stroke with microswitches for precise positioning of the folder cover Movable, frontal, electrically secured protective cage Configured for one type of rivet eyelets Rivet pattern fixed, however selectable when ordering for bracket heights up to 80 mm Electric part counter

Quadruple riveting machine 65-01

More options

90° lateral tool for large special formats

Projection 350 mm* in conjunction with foot switch (*spacing referred to centre of mechanical riveting diagram)

Technical Data

Projection	mm	300
Width	mm	880
Height	mm	1530
Depth	mm	940
Weight	kg	450
Working height	mm	900
Power requirement	kW	ca. 1,1
Cycle time	Sek.	0,5
3ph.Electrical connection	V	230/400
	Hz	50

Use cases

Lever arch files with lever mechanisms, slotted hole eyelets and grip hole eyelets
Display Use Case
Lever arch file for bank statements
Display Use Case
